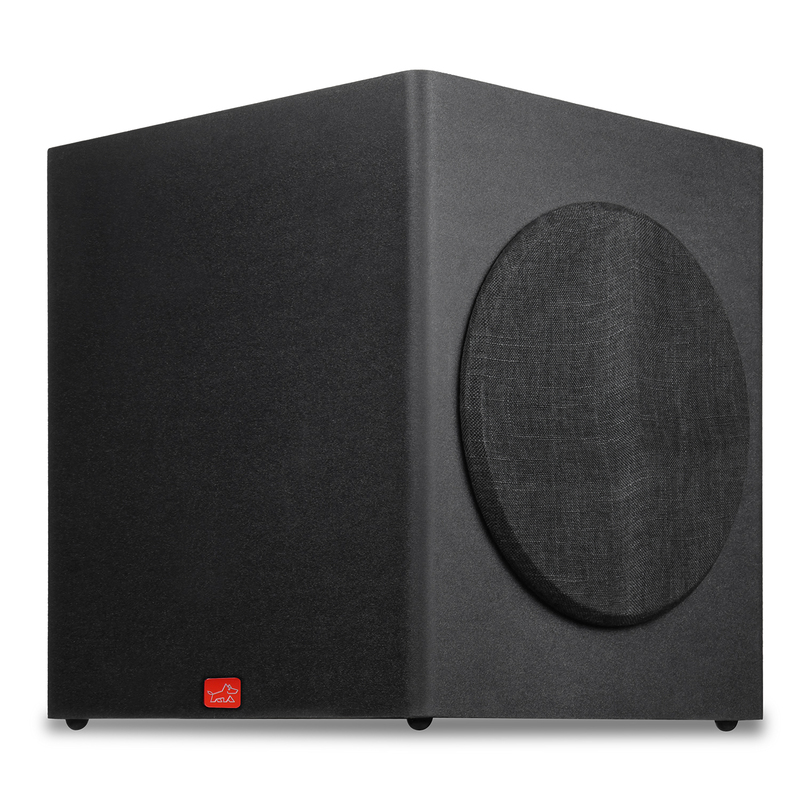

DoogeHiFi BALANCE-8D Dual-Driver Subwoofer
PRE-BOOKING OPEN, Estimated Delivery Starts Between 20 June – 28 June 2026
A dual-opposing sealed subwoofer designed for deep, controlled, and balanced bass performance for both music and home theater applications.
Share :
DoogeHiFi BALANCE-8D Dual-Opposing Design
The DoogeHiFi BALANCE-8D Dual-Driver subwoofer features a dual-opposing sealed architecture, where two subwoofer drivers operate in opposite directions within the same enclosure. One of the key advantages of this design is the reduction of unwanted mechanical vibrations, as the opposing driver movements help counterbalance cabinet forces. As a result, the enclosure feels more stable and controlled during operation. This approach allows the subwoofer to deliver bass that is not only powerful, but also cleaner, tighter, and more balanced. The overall design philosophy is focused on achieving a refined low-frequency experience for both music listening and cinematic home theater applications.
DoogeHiFi BALANCE-8D Dual-Driver Subwoofer
Specifications:
- Configuration: Dual Opposing Sealed Subwoofer
- Type: Passive Subwoofer (External Amplifier Required)
- Driver Size: Dual 8-Inch Subwoofer Drivers
- Enclosure Type: Acoustic Suspension / Sealed
- Cabinet Material: 18.3mm HDMR (Green)
- Internal Damping: Felt + Polyfill Acoustic Treatment
- Frequency Response: Approx. 32Hz – 150Hz (Room dependent)
- Nominal Impedance: 8Ω
- Recommended Amplifier Power: 80W – 150W RMS
- Recommended Operating Range:
Optimized for low-frequency reproduction below 100Hz
- Driver Resonance (Fs): Approx. 50Hz
- Driver Qts: Approx. 0.86
- Moving Mass (Mms): Approx. 79.63g
- Cooling System: Pole Vent / Vented Back Plate
- Weight (Net): 18.3 kg
- Design Focus: Controlled, Deep & Balanced Bass Reproduction
- Application: Music + Home Theater
- Finish: Premium Black PVC Wrap Finish
Installation, Placement & Usage Recommendations
For the best performance, place the DoogeHiFi BALANCE-8D Dual-Driver Subwoofer with the logo side facing towards the listening position, as this is considered the FRONT side of the subwoofer. The side containing the speaker binding posts should face towards the rear wall for easier cable management and proper installation.
Since the dual-opposing subwoofer drivers are mounted on the LEFT and RIGHT side panels, it is strongly recommended to maintain at least 6 to 12 inches of free space on both sides of the cabinet to allow unrestricted airflow and proper driver movement.
For balanced bass performance:
Avoid placing the subwoofer tightly into room corners initially
A starting distance of approximately 8 to 18 inches from the rear wall is recommended
Final placement may be adjusted according to room acoustics and listening preference
Placement Surface Requirement
For safe operation, proper airflow, and installation clearance, the DoogeHiFi BALANCE-8D should be placed on a stable and flat surface with a minimum recommended free space area of:
- Width: 16 inches (406mm)
- Depth: 16 inches (406mm)
- Height: 16 inches (406mm)
This additional space helps provide proper clearance for:
- Side-mounted driver grilles
- Rear speaker binding posts
- Cable connections
- Rubber feet
- Airflow around the enclosure
For best performance:
Avoid placing objects tightly around the cabinet
Use on solid and stable flooring whenever possible
Recommended Speaker Wire Gauge
Recommended speaker cable:
14 AWG recommended for most installations
12 AWG recommended for longer cable runs or higher power amplifiers
Use high-quality stranded copper speaker wire for best performance.
Recommended Room Size & Multi-Subwoofer Usage
The DoogeHiFi BALANCE-8D is designed to deliver deep, controlled, and immersive bass performance across a wide range of listening spaces.
Recommended Usage by Room Size
Small Rooms (up to approx. 120 sq. ft.)
→ 1 BALANCE-8D recommendedMedium Rooms (approx. 120 – 250 sq. ft.)
→ 1 or 2 BALANCE-8D recommendedLarge Rooms / Dedicated Home Theater Rooms (250 sq. ft. and above)
→ 2 or 4 BALANCE-8D recommended
Why Use More Than One Subwoofer?
Using multiple subwoofers can help create:
More balanced bass across the room
Better low-frequency coverage
Stronger and more immersive bass experience
Dual Subwoofer Setup
Using 2 subwoofers can help bass feel more even and room-filling, especially in medium and large rooms.
Recommended placement:
One subwoofer near the left side of the room
One subwoofer near the right side of the room
Quad Subwoofer Setup
Using 4 subwoofers can help create smoother and more consistent bass performance throughout the room, especially for dedicated home theater setups.
Recommended placement:
One subwoofer in each corner of the room
Final placement may vary depending on room acoustics and listening preference.
- Includes a 1-year limited warranty against manufacturing defects.
Note:
- Specifications are subject to change without prior notice.
- Removing or tampering with any screws, drivers, or internal components will void the warranty.
- In case of shipping damage or a non-working product, you must inform us within 24 hours of delivery, along with a video (with audio) clearly showing the issue.
